IGBT Transistörler - Modüller

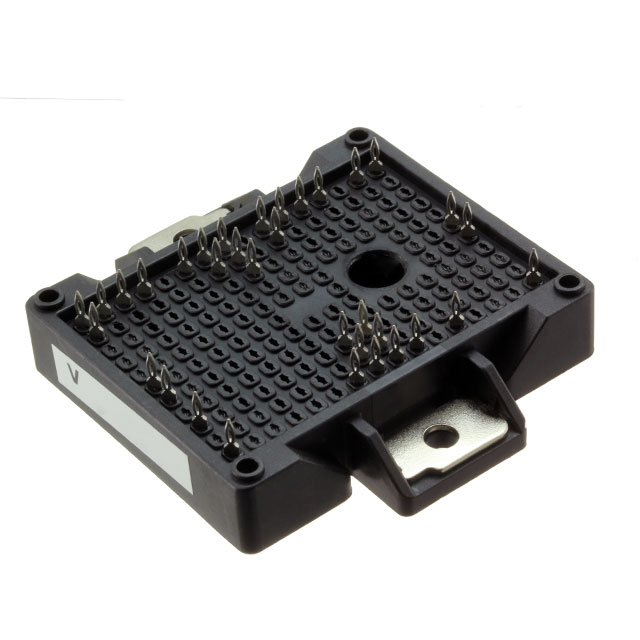

VS-ETF150Y65U
IGBT MOD 650V 142A EMIPAK-2B
- Üretici
- Vishay
- Paket/Kılıf
- EMIPAK-2B
- Kategori
- IGBT Transistörler - Modüller
- Seri / Aile Numarası
- VS-ETF150Y65U
VS-ETF150Y65U Hakkında
VS-ETF150Y65U, Vishay tarafından üretilen 650V 142A kapasiteli IGBT modülüdür. Three Level Inverter konfigürasyonunda çalışan bu bileşen, EMIPAK-2B paketinde chassis mount tipi montajı destekler. Trench tipi IGBT teknolojisine sahip olan modül, maksimum 417W gücünde çalışabilir ve 175°C junctiontemperatürüne kadar dayanabilir. Vce(on) değeri 15V, 100A koşullarında 2.06V olup, collector cutoff akımı maksimum 100µA'dir. 6.6nF input kapasitansi ile hızlı anahtarlama özelliğine sahiptir. Endüstriyel güç dönüştürücüler, invertörler ve motor kontrolü uygulamalarında kullanılan bu modül artık üretilmemektedir.
Teknik Özellikler
| Parametre | Değer |
|---|---|
| Configuration | Three Level Inverter |
| Current - Collector (Ic) (Max) | 142 A |
| Current - Collector Cutoff (Max) | 100 µA |
| IGBT Type | Trench |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 6.6 nF @ 30 V |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Operating Temperature | 175°C (TJ) |
| Package / Case | EMIPAK-2B |
| Part Status | Obsolete |
| Power - Max | 417 W |
| Supplier Device Package | EMIPAK-2B |
| Vce(on) (Max) @ Vge, Ic | 2.06V @ 15V, 100A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
Kaynaklar
Datasheet
Datasheet mevcut değil
Pinout
Pinout mevcut değil
Eşdeğerler (Muadiller)
Eşdeğer (muadil) veri yok
